| Hodochrone_Synth.gif | not available. |
| DistrAzi*.gif | not available. |
| movieGlo.gif ! its memory size : 20 Mb Alternative : Snapshots | movie of the vertical displacement at the global scale during this time reversal experiment. The vertical displacement along a great circle is also presented. At the moment of the focalisation a first diverging wave front is visible but it is due and centered on a reemitting station. A second and initially stronger diverging wave front appears after which is centered on the source point. |
| Maps_TFocalisation.gif | not available. |

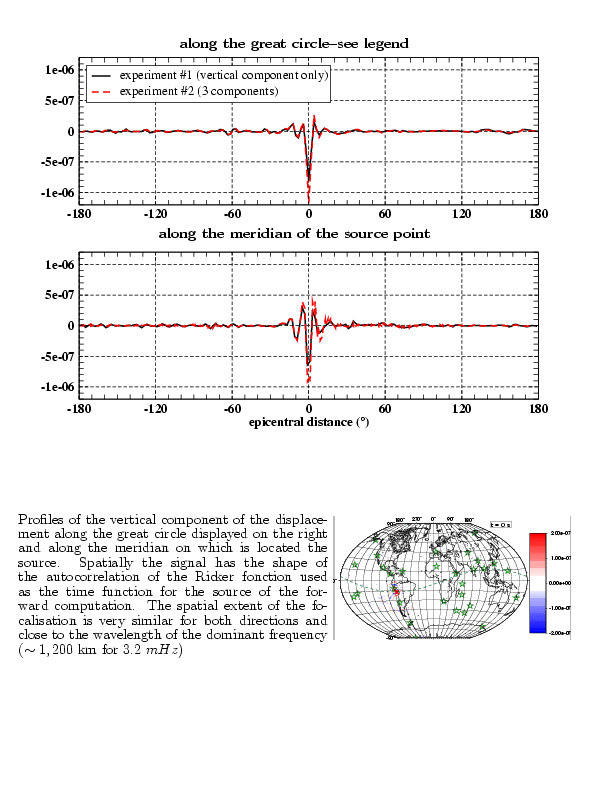

| Profiles_TFocalisation.gif | Two perpendicular profiles crossing at the source point. Comparison with the test #02 (3 comp.). |

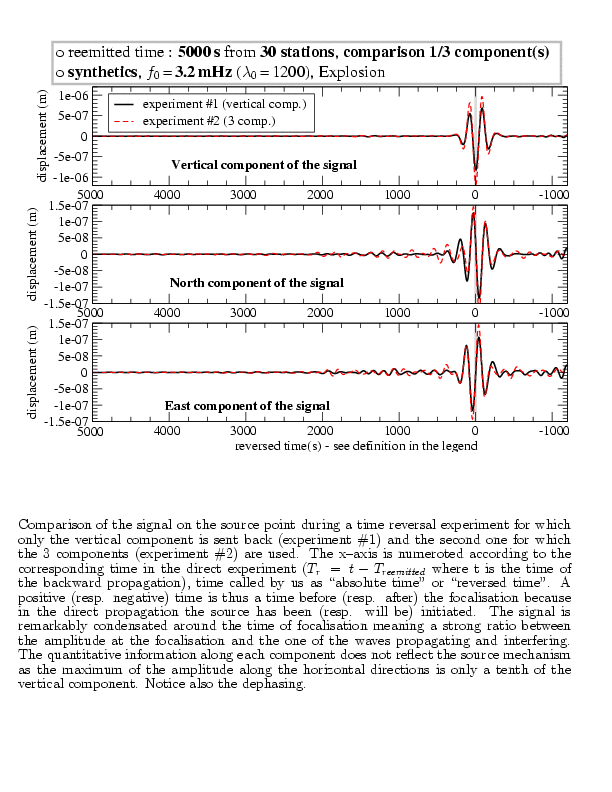

| Signal_PtSource.gif | Signal at the source point. Comparison with the test 2 (3 components). |
